Magnets
DYNASET hydraulic equipment converts the hydraulic power of mobile machinery magnet power.

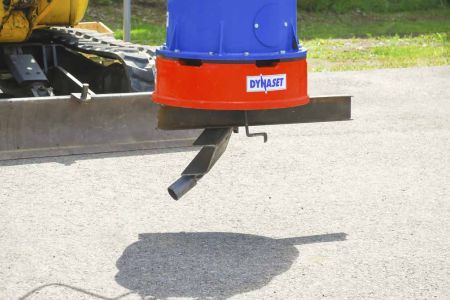

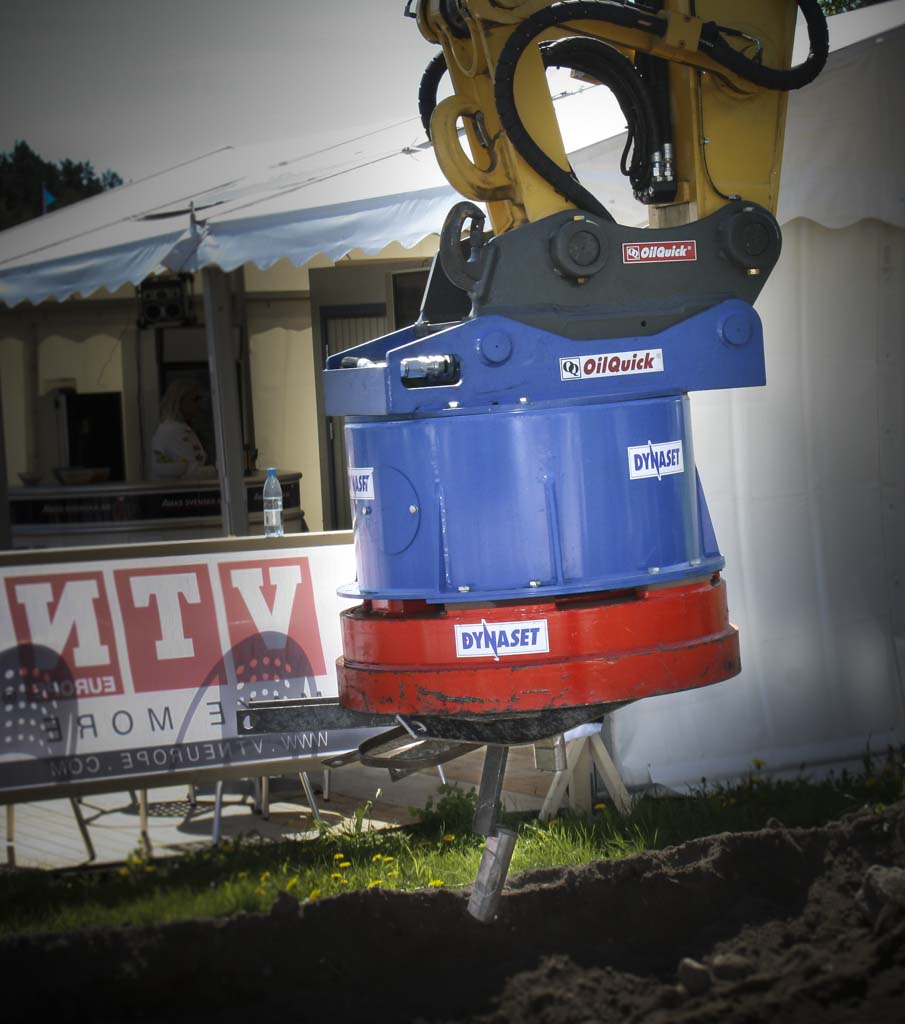

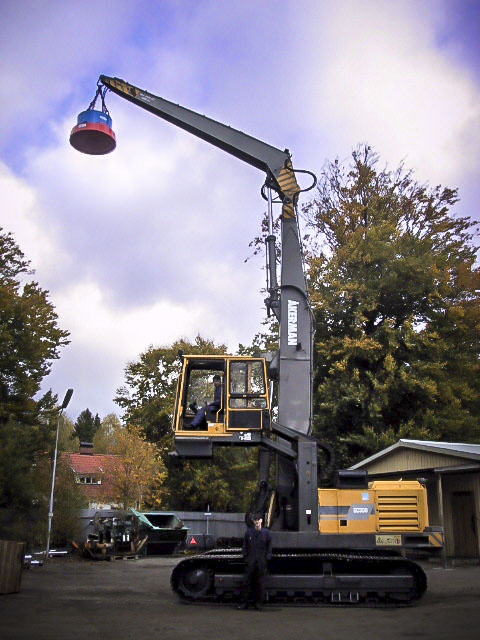

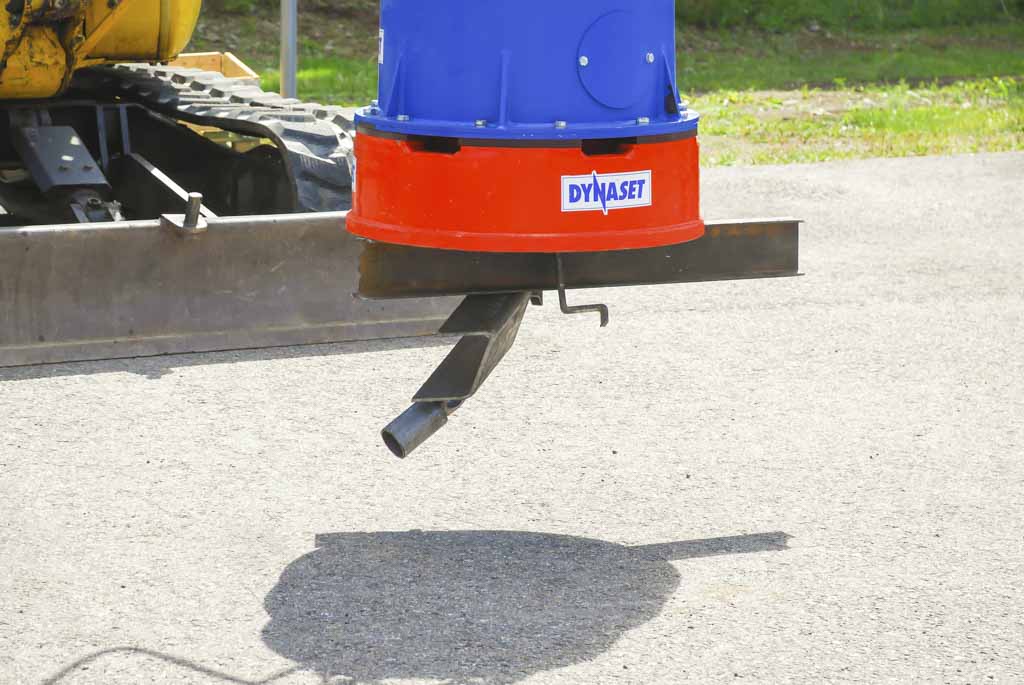

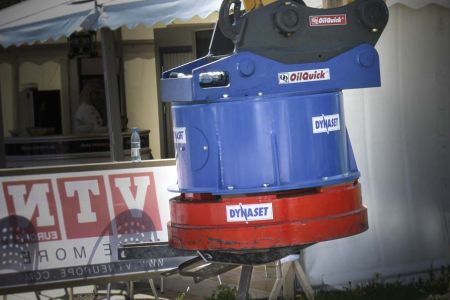

DYNASET HMAG PRO Hydraulic Magnet converts the hydraulic power of a mobile machine into magnet power. It has an integrated hydraulic magnet generator which makes it a complete all-in-one unit.
These units offer the world’s best 0.8 second demagnetizing time guarantees the fastest way of working. Minimizing the dead time in demagnetizing allows to collect metal more efficiently.
Applications
- Plug-and-play magnets with integrated magnet generator

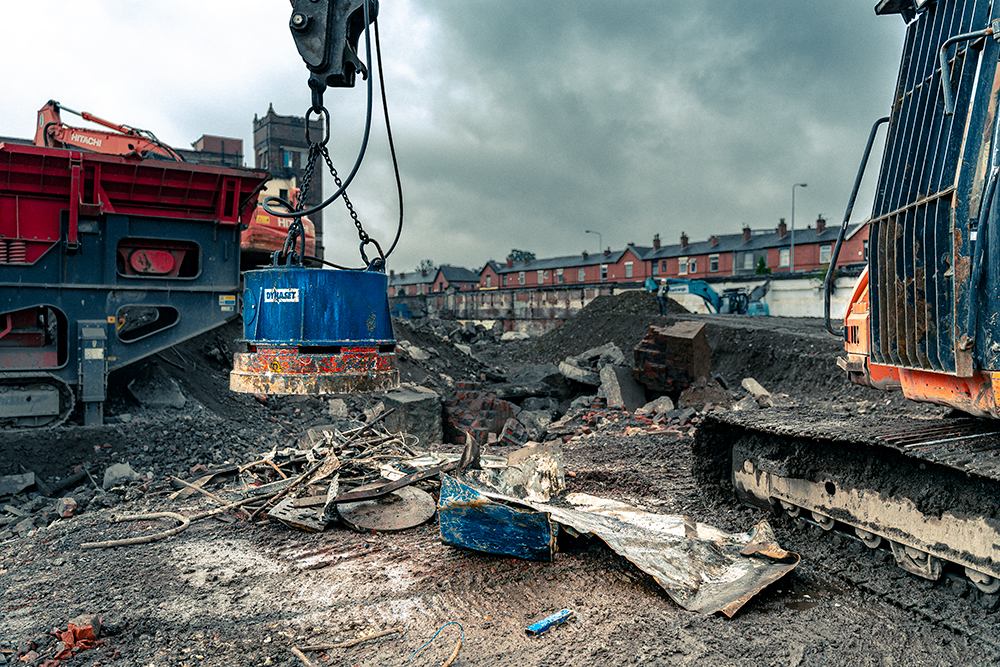

- Scrap and metal collecting in construction, demolition and recycling
- Railway and road side cleaning
- Metal separation
- Transport and collection of scrap
- Features
- Spec
- Downloads
HMAG Pro Hydraulic Magnet is a compact all-in-one-unit with good features.
- HMAG Pro Hydraulic Magnet’s tear-off force from 5,5 t (12t lbs.) up to 34 t (75 t lbs.) depending on the model
- High-quality structure
- Robust steel cover protects the integrated magnet generator
- Standard delivery includes two hydraulic hoses and lifting chains
- Easy and fast to connect to a machine’s hydraulic auxiliary line
- Quick to switch from one machine to another
- Fully controlled by hydraulics
| HMAG Hydraulic Magnet | |||||
| OUTPUT CHARACTERISTICS | HMAG PRO 700-21 | HMAG PRO 900-34 | HMAG PRO 1200-49 | HMAG PRO 1400-59 | |
| Magnet coil power max. | kW | 2,7 | 5,5 | 9,5 | 11 |
| Operating voltage | VDC | 220 ±5% | |||
| Magnet coils allowed resistance (20 °C) | Ohm | 16,1 ± 5% | 9,9 ± 5% | 8,8 ± 5% | 5,4 ± 5% |
| NOMINAL LIFTING CAPACITY | |||||
| Tear-off w/ air gap Ø/300 | kg (lbs) | 5500 (12100) | 10500 (23100) | 15000 (33000) | 34000 (74800) |
| Slabs, blocks | kg (lbs) | 2700 (5490) | 5250 (11550) | 7500 (16500) | 9500 (20900) |
| Cast iron pigs | kg (lbs) | 105 (231) | 230 (506) | 410 (902) | 1100 (2420) |
| Scrap | grade 3A, kg (lbs) | 80 (176) | 200 (440) | 370 (814) | 1000 (2200) |
| grade 24, kg (lbs) | 70 (154) | 190 (418) | 360 (792) | 900 (1980) | |
| grade 40, kg (lbs) | 40 (88) | 100 (220) | 190 (418) | 480 (1050) | |
| HYDRAULIC POWER REQUIREMENTS | |||||
| Flow min. | l / min (U.S. gpm) | 23 (6.7) | 37 (9.8) | 53 (14.0) | 63 (16.6) |
| Pressure max. | bar (psi) | 350 (5000) | 350 (5000) | 350 (5000) | 350 (5000) |
| OVERALL DIMENSIONS | |||||
| Diameter Ø | mm (in) | 750 (29.5) | 960 (37.8) | 1260 (49.6) | 1450 (57.1) |
| Weight (with chains) | kg (lbs) | 440 (968) | 900 (1980) | 1550 (3410) | 2900 (6380) |
